190020037 Avikrimp by Molex

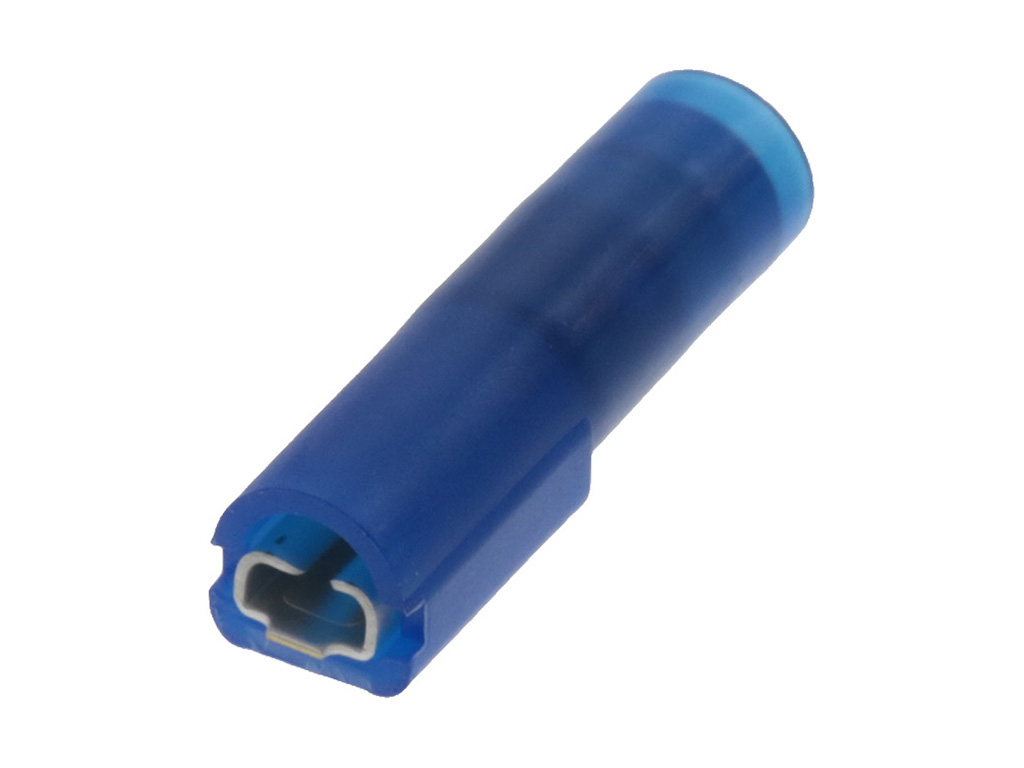

Avikrimp Fully Insulated Quick Disconnect, Female, for 16-14 AWG Wire, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19002-0037,
0190020037, BB-5281 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
RS Americas
from US$0.17
|
72,204
in stock
|
Buy Now |
|
TTI Americas
from US$0.23
|
27,454
in stock
|
Buy Now |
|
|
RS
from US$0.49
|
4,300
in stock
|
Buy Now |
|
Newark Electronics
from US$0.37
|
4,189
in stock
|
Buy Now |
|
element14
from US$0.34
|
4,189
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
4,189
in stock
|
Buy Now |
|
Heilind Americas
from US$0.27
|
3,415
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
21,900
in stock
|
Buy Now |
|
Avnet America
from US$0.22
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.40
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.20
|
0
in stock
|
Buy Now |
|
Sager
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.17
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.19
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.802/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 2.79mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 3.94mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FREC-DSC|16-14|110X032|NYL|BLU | TTI Americas |
| Molex 19002-0037 Spade Connector | RS |
| Female Disconnect, 2.79Mm, 16-14Awg Rohs Compliant: Yes |Molex 19002-0037 | Newark Electronics |
| FEMALE DISCONNECT, 2.79MM, 16-14AWG | element14 |
| .110X.032 FEM. FIQD AVIKRIMP BB-5281) | Heilind Americas |
| Quick Disconnect Terminal 14-16AWG F 20.3mm 5.8mm Tin Loose Piece | Avnet America |
| Molex 190020037 Flachsteckhülse 1 St. | Conrad |
| .110X.032 FEM. FIQD AVIKR | TTI Europe |
| Terminals FREC-DSC 16-14 110X032 NYL BLU | Sager |
| .110X.032 FEM. FIQD AVIKRIMP ( | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190020037?
Additional datasheets, footprints and schematics for 190020037 are listed on our Part Details page. You can also find images and similar parts to 190020037 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190020037 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190020037 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190020037 fall under?
The 190020037 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190020037 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190020037 you can contact the distributor directly for product support, shipping queries etc.
Is the 190020037 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190020037 have stock available?
Authorised distributors including RS Americas, TTI Americas, RS, Newark Electronics and element14 have stock available or on a lead time for 190020037.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190020037 often in real-time on the comparison pages.
What if I can't find stock of 190020037?
You can fill out our help required form which you can use to request a quote for 190020037 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
