190020029 Avikrimp by Molex

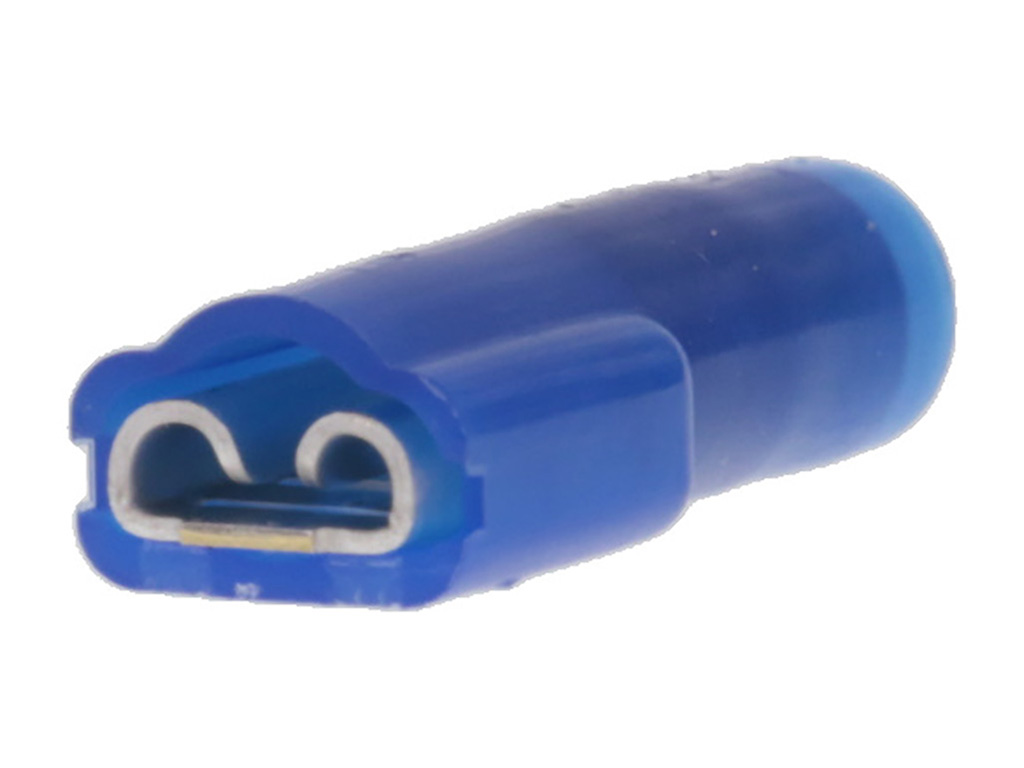

Avikrimp Fully Insulated Quick Disconnect, Female, for 16-14 AWG Wire, Mylar Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19002-0029,
0190020029, BB-5269T |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.44
|
4,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.34
|
4,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.35
|
2,250
in stock
|
Buy Now |
|
RS Americas
from US$0.32
|
9
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
40,000
in stock
|
Buy Now |
|
Avnet America
from US$0.41
|
0
in stock
|
Buy Now |
|
element14
from US$0.54
|
0
in stock
|
Buy Now |
|
Conrad
from US$467.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.30
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.010/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 3.94mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminals Quick Disconnect Female 16-14 Awg Rohs Compliant: Yes |Molex 19002-0029 | Newark Electronics |
| FREC-DSC|16-14|187X020|NYL|BLU | TTI Americas |
| .187X.020 FEM. QD AVIK. TAPED (BB-5269T) | Heilind Americas |
| AVIKRIMP FULLY INSULATED QUICK DISCONNECT, FEMALE,14 16 AWG WIRE, MYLAR TAPE | RS Americas |
| FEMALE QUICK DISCONNECT, 14AWG, BLUE | element14 |
| Molex 190020029 Flachsteckhülse 1000 St. Tape | Conrad |
