190020010 Avikrimp by Molex

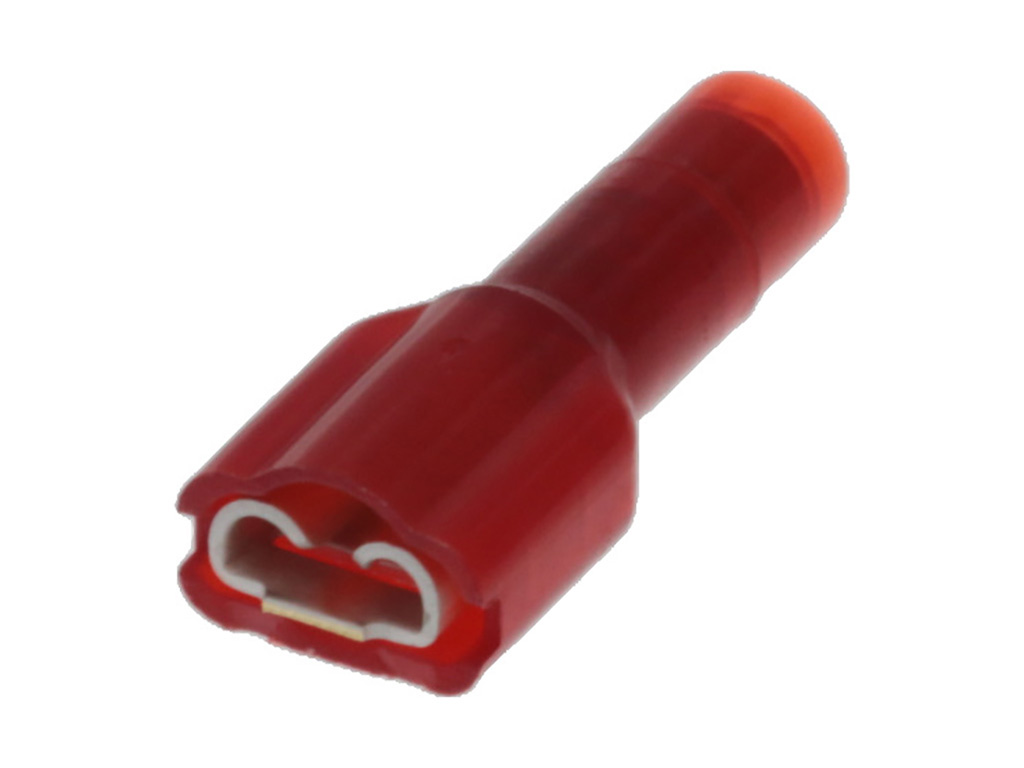

Avikrimp Fully Insulated Quick Disconnect, Female, for 22-18 AWG Wire, Mylar Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19002-0010,
0190020010, AA-5271T |
Where to Buy
Prices starting from US$0.15
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.15
|
23,250
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
10,000
in stock
|
Buy Now |
|
Conrad
from US$387.01
|
5,000
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
5,000
in stock
|
Buy Now |
|
TME
from US$0.34
|
4,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.22
|
0
in stock
|
Buy Now |
|
Compona
from US$0.29
|
0
in stock
|
Buy Now |
|
element14
from US$0.31
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
EME
from US$0.31
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.849/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 3.17mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .187X.032 FEM. QD AVIK. TAPED (AA-5271T) | Heilind Americas |
| FREC-DSC|22-18|187X032|NYL|RED | TTI Americas |
| Molex 190020010 Flachsteckhülse 1000 St. Tape | Conrad |
| CRIMP TERMINALS - RING TONGUE | Farnell |
| Terminal: flat | TME |
| Female Disconnect, 4.75Mm, 22-18Awg, Red | Newark Electronics |
| MOLEX 19002-0010 Cable Lug fully Insulated AWG 22 | Compona |
| QUICK DISCONNECT FEMALE(18-22) | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190020010?
Additional datasheets, footprints and schematics for 190020010 are listed on our Part Details page. You can also find images and similar parts to 190020010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190020010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190020010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190020010 fall under?
The 190020010 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190020010 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190020010 you can contact the distributor directly for product support, shipping queries etc.
Is the 190020010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190020010 have stock available?
Authorised distributors including Heilind Americas, TTI Americas, Conrad, Farnell and TME have stock available or on a lead time for 190020010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190020010 often in real-time on the comparison pages.
What if I can't find stock of 190020010?
You can fill out our help required form which you can use to request a quote for 190020010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
