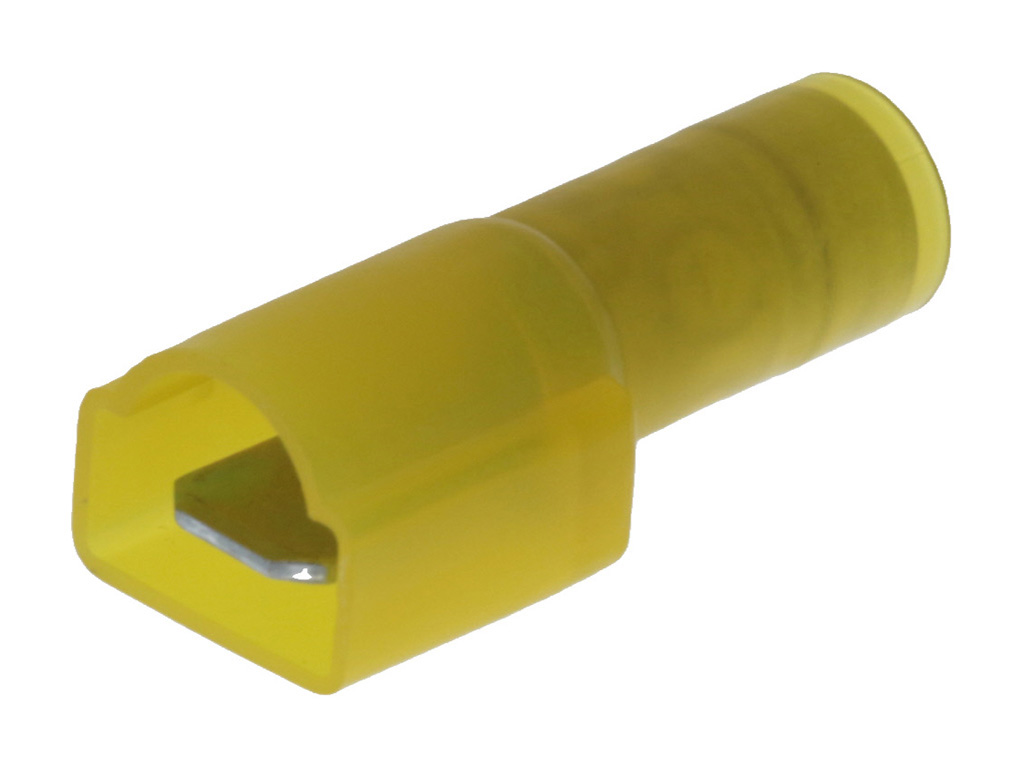

190010010 Avikrimp by Molex
Avikrimp Quick Disconnect, Male, for 10-12 (5.00-3.30mm²), Box, Tab 6.35 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19001-0010,
0190010010, C-5264 |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
RS Americas
from US$0.71
|
5,403
in stock
|
Buy Now |
|
TTI Americas
from US$0.38
|
4,010
in stock
|
Buy Now |
|
Waytek
from US$0.33
|
2,475
in stock
|
Buy Now |
|
Heilind Americas
from US$0.35
|
2,184
in stock
|
Buy Now |
|
TME
from US$0.42
|
800
in stock
|
Buy Now |
|
Conrad
from US$0.66
|
800
in stock
|
Buy Now |
|
Farnell
from US$0.65
|
720
in stock
|
Buy Now |
|
Newark Electronics
from US$0.54
|
411
in stock
|
Buy Now |
|
element14
from US$0.41
|
411
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
23,024
in stock
|
Buy Now |
|
|
RS
from US$0.43
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.31
|
0
in stock
|
Buy Now |
|
Sager
from US$0.32
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.29
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.33
|
0
in stock
|
Buy Now |
|
EME
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Zinc Chromate |
| Material Plating Termination | Zinc Chromate |
| Net Weight | 2.359/g |
| Orientation | Straight |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 5.84mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FTAB-DSC|12-10|250X032|NYL|YEL | TTI Americas |
| .250X.032 MALE FIQD AVIKRIMP C-5264) | Heilind Americas |
| Terminal: flat | TME |
| Molex 190010010 Flachstecker 1 St. Bulk | Conrad |
| MALE QUICK DISCONNECT, 12-10AWG, YELLOW | Farnell |
| Male Disconnect, 6.35Mm, 12-10Awg, Yel | Newark Electronics |
| MALE DISCONNECT, 6.35MM, 12-10AWG, YEL | element14 |
| Molex 19001-0010 Spade Connector | RS |
| Terminals FTAB-DSC 12-10 250X032 NYL YEL | Sager |
