190010008 Avikrimp by Molex

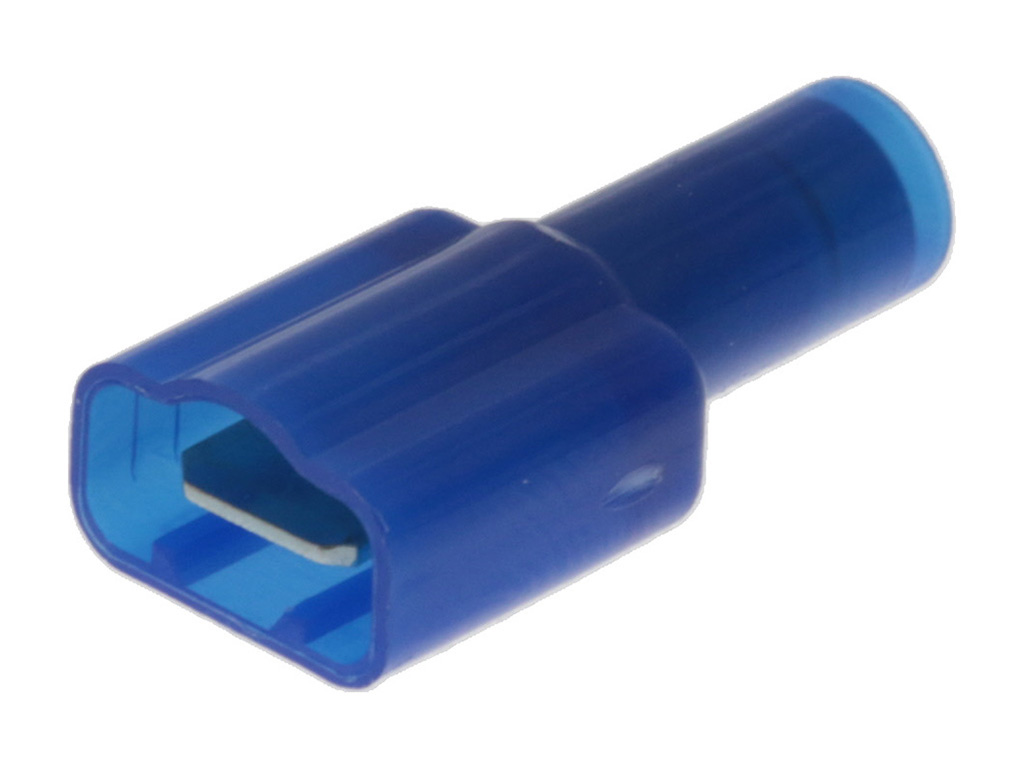

Avikrimp Quick Disconnect, Male, for 14-16 (2.00-1.30mm²), Box, Tab 4.75 x 0.51mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19001-0008,
0190010008, BB-5268 |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.34
|
13,270
in stock
|
Buy Now |
|
Waytek
from US$0.29
|
3,781
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
555
in stock
|
Buy Now |
|
element14
from US$0.44
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.62
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.35
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Zinc Chromate |
| Material Plating Termination | Zinc Chromate |
| Net Weight | 1.201/g |
| Orientation | Straight |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 4.32mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FTAB-DSC|16-14|187X020|NYL|BLU | TTI Americas |
| TERMINAL, MALE DISCONNECT, 0.187IN, BLUE | element14 |
| .187X.020 MALE FIQD AVIKRIMP BB-5268) | Heilind Europe |
| .187X.020 MALE FIQD AVIKRIMP (BB-5268) | Farnell |
| Quick Disconnect Terminal 14-16AWG M 22.9mm 9.7mm Zinc Chromate Bag | Avnet Abacus |
