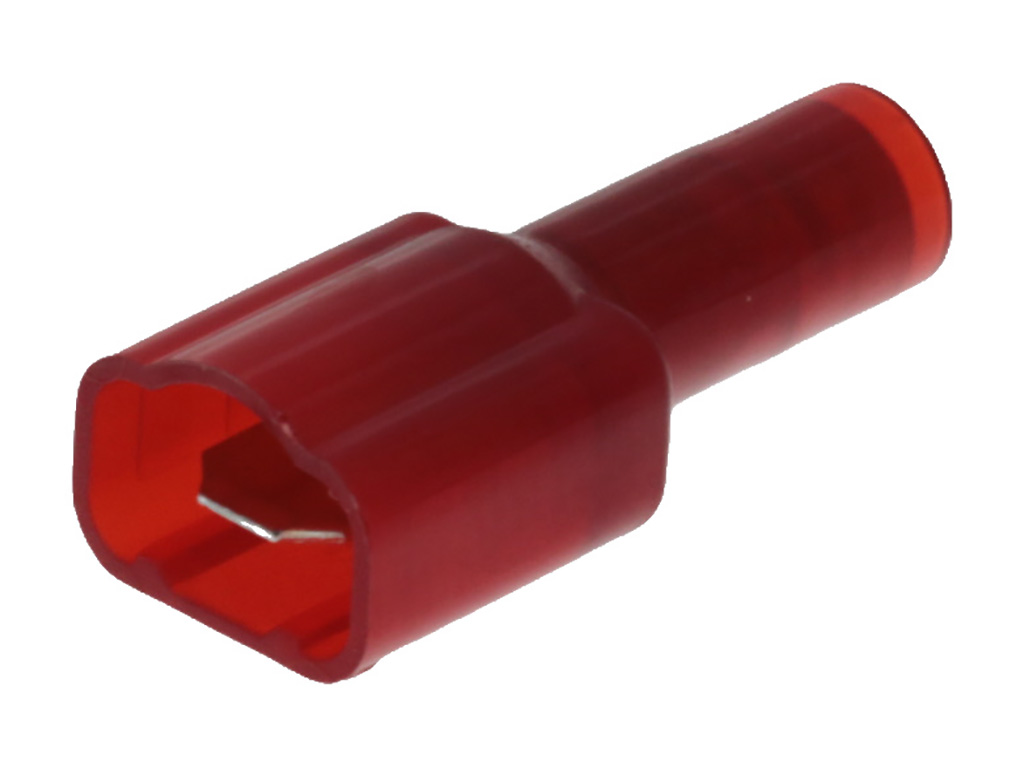

190010005 Avikrimp by Molex
Avikrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm²), Mylar Tape, Tab 4.75 x 0.51mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19001-0005,
0190010005, AA-5266T |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.43
|
38,500
in stock
|
Buy Now |
|
Heilind Americas
from US$0.40
|
25,125
in stock
|
Buy Now |
|
Farnell
from US$0.55
|
6,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.56
|
5,500
in stock
|
Buy Now |
|
TME
from US$0.57
|
5,500
in stock
|
Buy Now |
|
Conrad
from US$277.69
|
2,500
in stock
|
Buy Now |
|
Avnet America
from US$0.55
|
500
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
27,500
in stock
|
Buy Now |
|
RS
from US$0.73
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.72
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.44
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Zinc Chromate |
| Material Plating Termination | Zinc Chromate |
| Net Weight | 1.056/g |
| Orientation | Straight |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 3.56mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FTAB-DSC|22-18|187X020|NYL|RED | TTI Americas |
| .187X.020 MALE QD AVIK.TAPED AA-5266T) | Heilind Americas |
| CRIMP TERMINALS - CONNECT AND DISCONNECT | Farnell |
| Terminal, Male Disconnect, 0.187In, Red | Newark Electronics |
| Terminal: flat | TME |
| Molex 190010005 Flachstecker 500 St. Tape | Conrad |
| Quick Disconnect Terminal 18-22AWG M 22.86mm 9.65mm Zinc Chromate Tape | Avnet America |
| Molex 19001-0005 Spade Connector | RS |
| AVIKRIMP QUICK DISCONNECT, MALE,18 22, MYLAR TAPE | RS Americas |
