1731120050 FCT Products by Molex

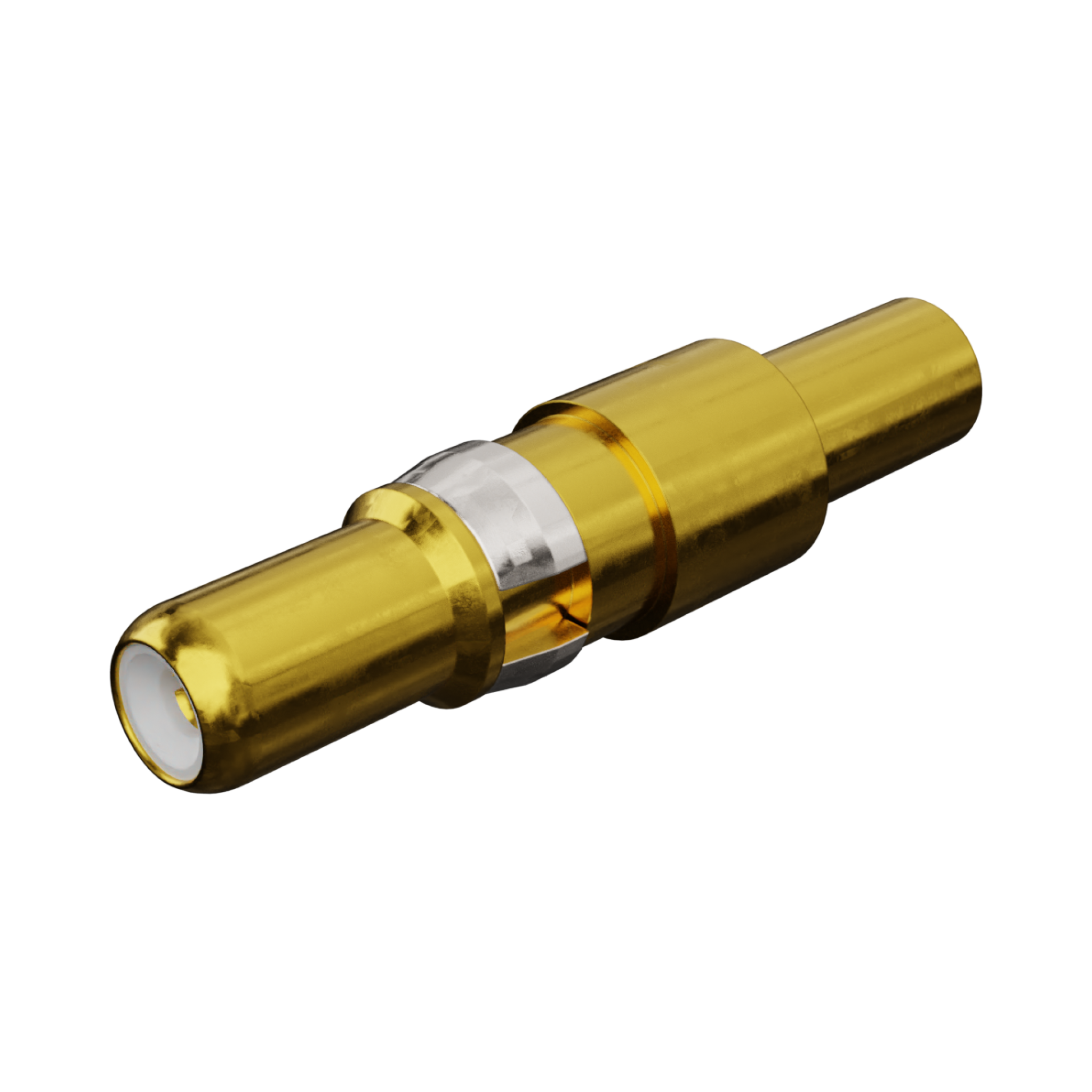

FCT Coaxial Contact, Male, Straight, Crimp, 50 Ohms, 1.30µm Gold Plating, for RG-174U, RG-188AU, or RG-316U Cable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0050,
FMS001P102 |
Where to Buy
Prices starting from US$3.97
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$4.76
|
20
in stock
|
Buy Now |
|
Heilind Europe
from US$4.99
|
4
in stock
|
Buy Now |
|
Newark Electronics
from US$4.89
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.97
|
0
in stock
|
Buy Now |
|
Compona
from US$4.49
|
0
in stock
|
Buy Now |
|
element14
from US$6.62
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$6.80
|
0
in stock
|
Buy Now |
|
Sager
from US$4.76
|
0
in stock
|
Buy Now |
|
Farnell
from US$6.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$6.77
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Impedance | 50Ω |
Physical |
|
|---|---|
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Gold over Nickel |
| Net Weight | 1.300/g |
| Orientation | Straight |
| Plating Min Mating | 1.300µm |
| Plating Min Termination | 0.200µm |
| Temperature Range Operating | -55° to +135°C |
| Termination Style | Crimp |
| Wire Cable Type | RG-174U, RG-188AU, RG-316U |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex 1731120050 | RS |
| FMS001P102 FCT TERM HFREQ CRP PLG 50 OHM | Heilind Europe |
| Fct Term Hfreq Str Crp Plg 50 Ohm |Molex 173112-0050 | Newark Electronics |
| FCT TERM HFREQ CRP PLG 50 OHM | Avnet America |
| MOLEX FMS001P102 Contact mâle coax | Compona |
| D-SUB CONTACT, PIN, CRIMP | element14 |
| FCT TERM HFREQ STR CRP PL | TTI Europe |
| D-Sub Contacts FCT TERM HFREQ STR CRP PLG 50 OHM | Sager |
173112-0050 FCT ELECTRONIC gmbh Parts by FCT ELECTRONIC gmbh
D-SUB CONTACT PIN CRIMP
| Status: | Unknown |
|---|---|
| Series: | 173112 Series |
| RoHS: | Unknown |
Specifications
| For Use With | Molex D Sub Housing Connectors |
|---|---|
| Contact Gender | Pin |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Max | - |
| Wire Size AWG Min | - |
| Contact Termination Type | Crimp |
| Product Range | 173112 Series |
| SVHC | No SVHC (15-Jan-2019) |
