1731070630 FCT Products by Molex

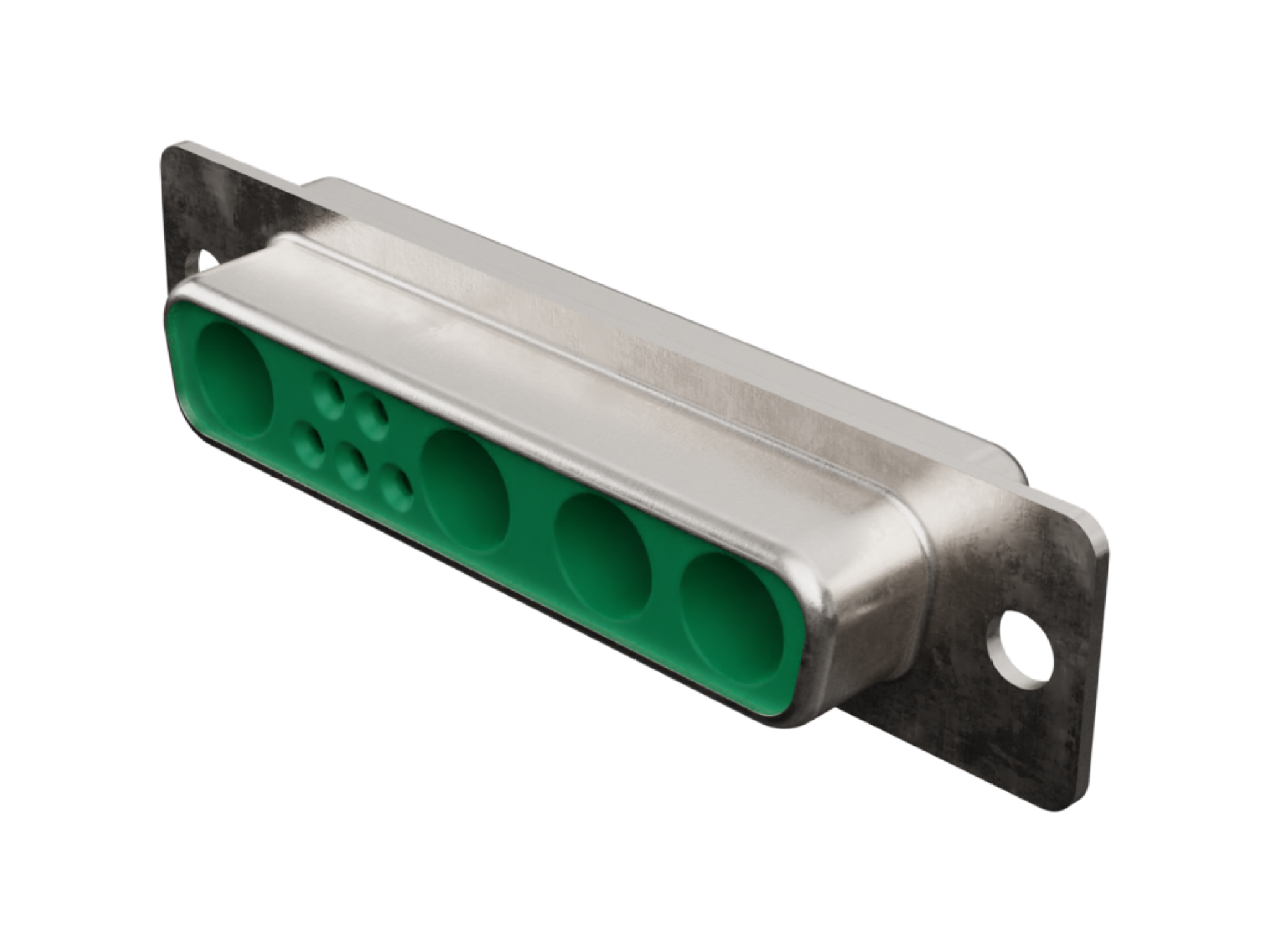

FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 9 Circuits Max, 5 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0630,
FM9W4S5-K121 |
Where to Buy
Prices starting from US$1.75
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.75
|
53
in stock
|
Buy Now |
|
element14
from US$7.10
|
53
in stock
|
Buy Now |
|
Farnell
from US$8.38
|
53
in stock
|
Buy Now |
|
RS
from US$7.94
|
29
in stock
|
Buy Now |
|
Offical Electronic
-
|
285
in stock
|
Buy Now |
|
Avnet America
from US$4.44
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$125.60
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$6.68
|
0
in stock
|
Buy Now |
|
Sager
from US$3.89
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.81
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.22
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 9 |
| Color Resin | Green |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 9.200/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.10mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Ml Dsub Ra Pc Rcpt 9W4 Rohs Compliant: Yes |Molex/fct 173107-0630 | Newark Electronics |
| FCT ML DSUB RA PC RCPT 9W4 23AH1445 | element14 |
| SOCKET RIGHT ANGLE 9W4 | RS |
| Combo D Sub Connector RCP 5Signal/4Power Position DB Shell Size Panel Mount/Through Hole Right Angle | Avnet America |
| STANDARD-DENSITY WATERPROOF, FEMALE, STRAIGHT, SOLDER CUP, GOLD, 25 CIRCUIT | RS Americas |
| DSUB, MIXED LAYOUT | TTI Americas |
| D-Sub Mixed Contact Connectors FCT ML DSUB RA PC RCPT 9W4 | Sager |
| FM9W4S5-K121 FCT ML DSUB RA PC RCPT 9W4 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731070630?
Additional datasheets, footprints and schematics for 1731070630 are listed on our Part Details page. You can also find images and similar parts to 1731070630 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731070630 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731070630 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731070630 fall under?
The 1731070630 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731070630 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731070630 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731070630 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731070630 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS and Offical Electronic have stock available or on a lead time for 1731070630.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731070630 often in real-time on the comparison pages.
What if I can't find stock of 1731070630?
You can fill out our help required form which you can use to request a quote for 1731070630 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
