1720430202 Super Sabre by Molex

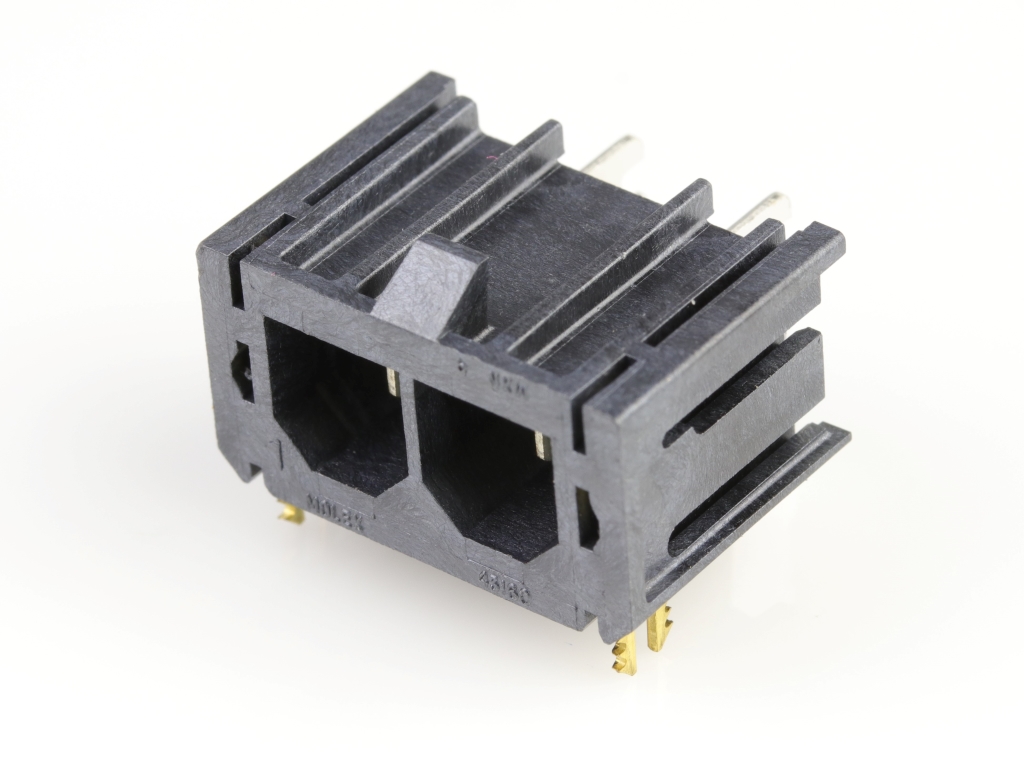

Super Sabre Right-Angle Header, 7.50mm Pitch, 2 Circuits, Glow-Wire Capable, 3.81mm Tail Length, with Board Lock, Complies with UL1977 Finger Proof Standards
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172043-0202 |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$1.54
|
9,180
in stock
|
Buy Now |
|
Conrad
from US$2.55
|
2,240
in stock
|
Buy Now |
|
TTI Europe
from US$1.39
|
825
in stock
|
Buy Now |
|
RS
from US$2.63
|
150
in stock
|
Buy Now |
|
element14
from US$1.76
|
95
in stock
|
Buy Now |
|
Avnet Abacus
-
|
6,225
in stock
|
Buy Now |
|
TME
from US$1.76
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.16
|
0
in stock
|
Buy Now |
|
Sager
from US$1.26
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.17
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.84
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Super Sabre |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 600V AC (RMS) |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Silver |
| Material Plating Termination | Matte Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 3.509/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Retention | Yes |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Plating Min Mating | 0.025µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn Wire to Board Header 2 POS 7.5mm Solder RA Through Hole | Avnet America |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 7.5 mm 1720430202 1 St. Tray | Conrad |
| SUPER SABRE RIGHT-ANGLE HEADER | TTI Europe |
| Molex 1720430202 PCB Header | RS |
| CONNECTOR, HEADER, 2POS, 1ROW, 7.49MM | element14 |
| Connector: wire-board | TME |
| SUPER-SABRE RA 02P | TTI Americas |
| Headers & Wire Housings SUPER-SABRE RA 02P | Sager |
| SUPER-SABRE R/A HDR ASSY FGRPRF | Heilind Europe |
