1720430201 Super Sabre by Molex

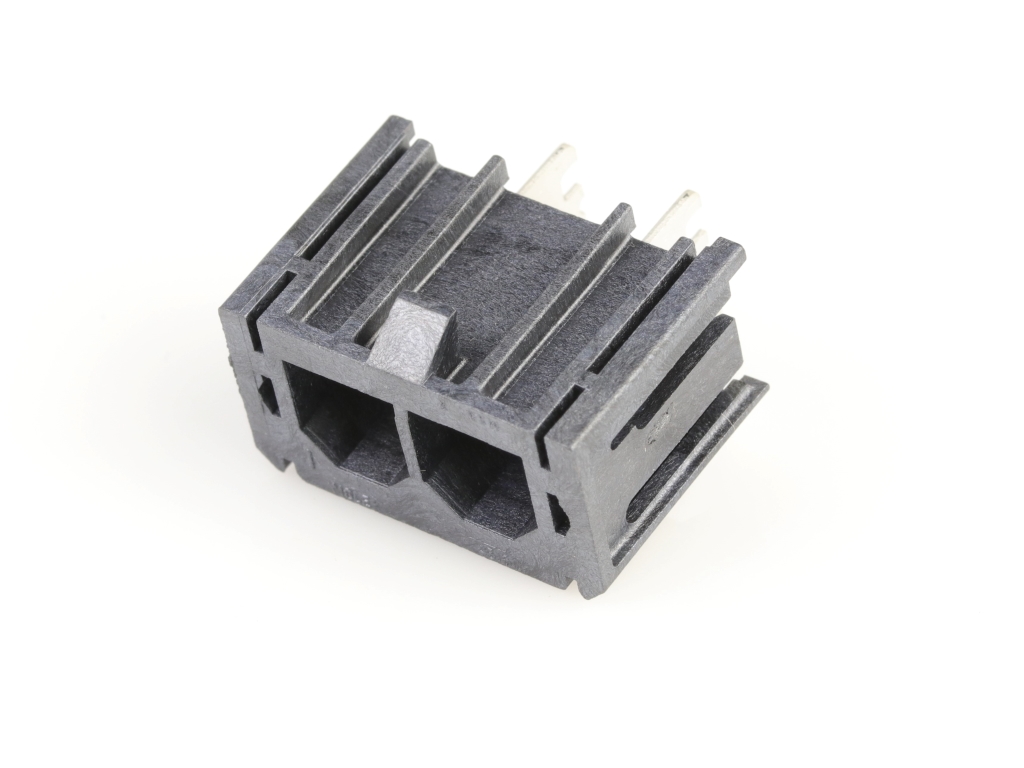

Super Sabre Right-Angle Header, 7.50mm Pitch, 2 Circuits, Glow-Wire Capable, 3.81mm Tail Length, without Board Lock, Complies with UL1977 Finger Proof Standards
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172043-0201 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.98
|
38,001
in stock
|
Buy Now |
|
Conrad
from US$2.05
|
38,001
in stock
|
Buy Now |
|
Farnell
from US$1.57
|
34,201
in stock
|
Buy Now |
|
Rutronik
from US$1.30
|
0
in stock
|
Buy Now |
|
RS
from US$1.91
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.83
|
0
in stock
|
Buy Now |
|
element14
from US$1.29
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
Sager
from US$1.02
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.03
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.90
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Super Sabre |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 600V AC (RMS) |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Lock To Mating Part | Yes |
| Material Metal | ETP Copper |
| Material Plating Mating | Silver |
| Material Plating Termination | Matte Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 3.261/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Retention | No |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 1720430201 1 St. Tray | Conrad |
| CONN, HEADER, 2POS, 1ROW, 7.49MM | Farnell |
| 02P SUPER SABRE W BOARD LOCK | Rutronik |
| Molex 172043-0201 PCB Header Pin | RS |
| Super Sabre R/A Header, 2 Circuit, Short Solder Tail w/o Board Lock | Avnet America |
| CONNECTOR, HEADER, 2POS, 1ROW, 7.49MM | element14 |
| SUPER-SABRE R/A HDR 2CKT | TTI Europe |
| Headers & Wire Housings Super-Sabre R/A Hdr Assy 2ckt FgrPrf | Sager |
| SUPER-SABRE R/A HDR ASSY 2CKT FGRPRF | Heilind Europe |
| SUPER-SABRE R/A HDR ASSY | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1720430201?
Additional datasheets, footprints and schematics for 1720430201 are listed on our Part Details page. You can also find images and similar parts to 1720430201 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1720430201 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1720430201 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1720430201 fall under?
The 1720430201 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 1720430201 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1720430201 you can contact the distributor directly for product support, shipping queries etc.
Is the 1720430201 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1720430201 have stock available?
Authorised distributors including TME, Conrad, Farnell, Rutronik and RS have stock available or on a lead time for 1720430201.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1720430201 often in real-time on the comparison pages.
What if I can't find stock of 1720430201?
You can fill out our help required form which you can use to request a quote for 1720430201 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
