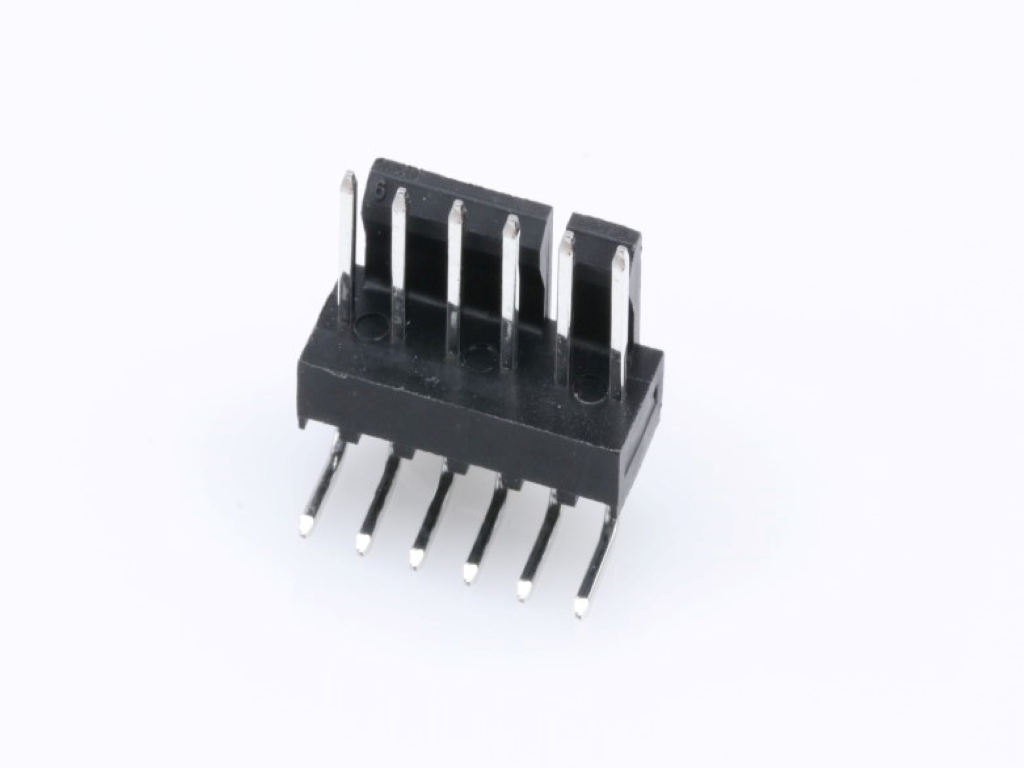

1718570006 KK 254 by Molex
KK 254 RPC Right-Angle Header, 2.54mm Pitch, Friction Lock, Reflowed Matte Tin (Sn) Plating, 6.73mm Mating Pin Length, 2.54mm Tail Length, Bag, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 171857-0006 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.64
|
3,140
in stock
|
Buy Now |
|
Farnell
from US$0.41
|
2,826
in stock
|
Buy Now |
|
RS
from US$0.44
|
420
in stock
|
Buy Now |
|
TME
from US$0.32
|
63
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
element14
from US$0.33
|
0
in stock
|
Buy Now |
|
Sager
from US$0.20
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board, Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-1 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.786/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.54mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 2.54 mm 1718570006 1 St. Bag | Conrad |
| CONN, HEADER, 6POS, 1ROW, 2.54MM | Farnell |
| Molex 171857-0006 Pin Header | RS |
| Connector: wire-board | TME |
| Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Bag | Avnet America |
| CONNECTOR, HEADER, 6POS, 1ROW, 2.54MM | element14 |
| Headers & Wire Housings KK .100 HDR 06P RA | Sager |
| KK RPC 100 HDR FRLK RTAN T TIN | Heilind Europe |
