15912180 C-Grid by Molex

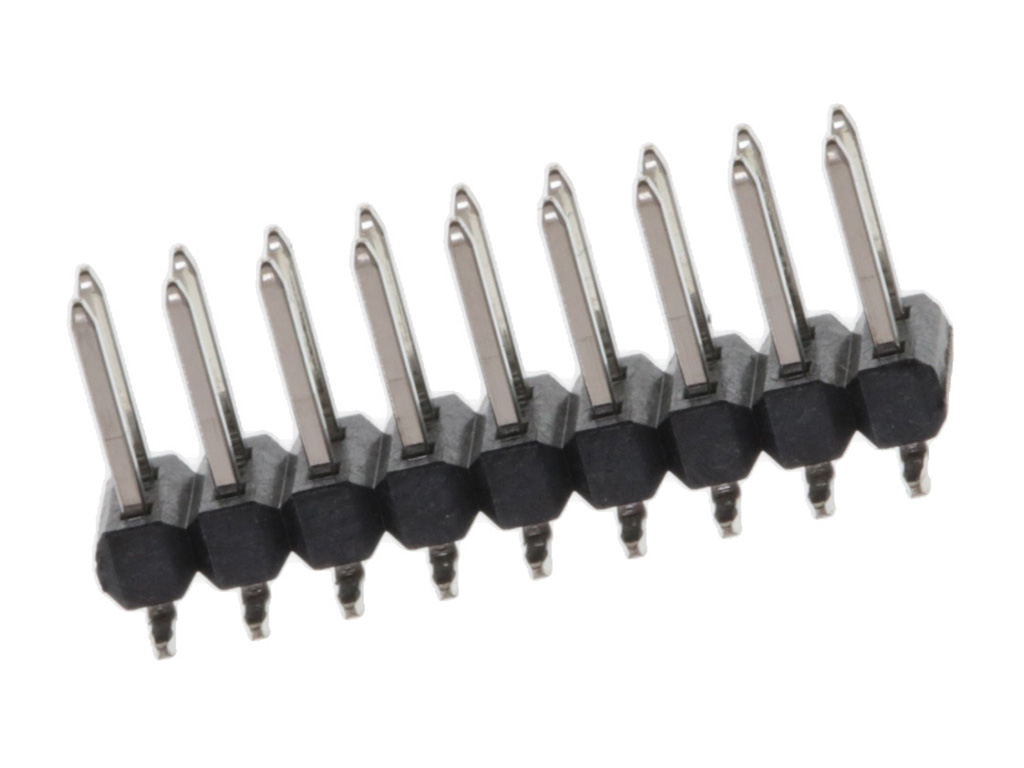

C-Grid Breakaway PCB Header, 2.54mm Pitch, Surface Mount, Dual Row, Vertical, 18 Circuits, Tin (Sn) Plating, 6.10mm Mating Pin Length, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-91-2180,
0015912180, 71308-0018N |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.30
|
7,452
in stock
|
Buy Now |
|
Conrad
from US$1.92
|
6,864
in stock
|
Buy Now |
|
TME
from US$0.78
|
4,968
in stock
|
Buy Now |
|
Newark Electronics
from US$1.29
|
1,896
in stock
|
Buy Now |
|
RS
from US$1.16
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.00
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 18 |
| Circuits Maximum | 18 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.412/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, HEADER, 18POS, 2ROW, 2.54MM | Farnell |
| Molex Einbau-Stiftleiste (Standard) Anzahl Reihen: 2 15912180 1 St. Tube | Conrad |
| Connector: pin strips | TME |
| Connector, Header, 18Pos, 2Row, 2.54Mm | Newark Electronics |
| Molex 15-91-2180 PCB Header | RS |
| Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD Tube | Avnet America |
| CGRID SMT BKWY HDR TIN 18CKT T | Heilind Europe |
