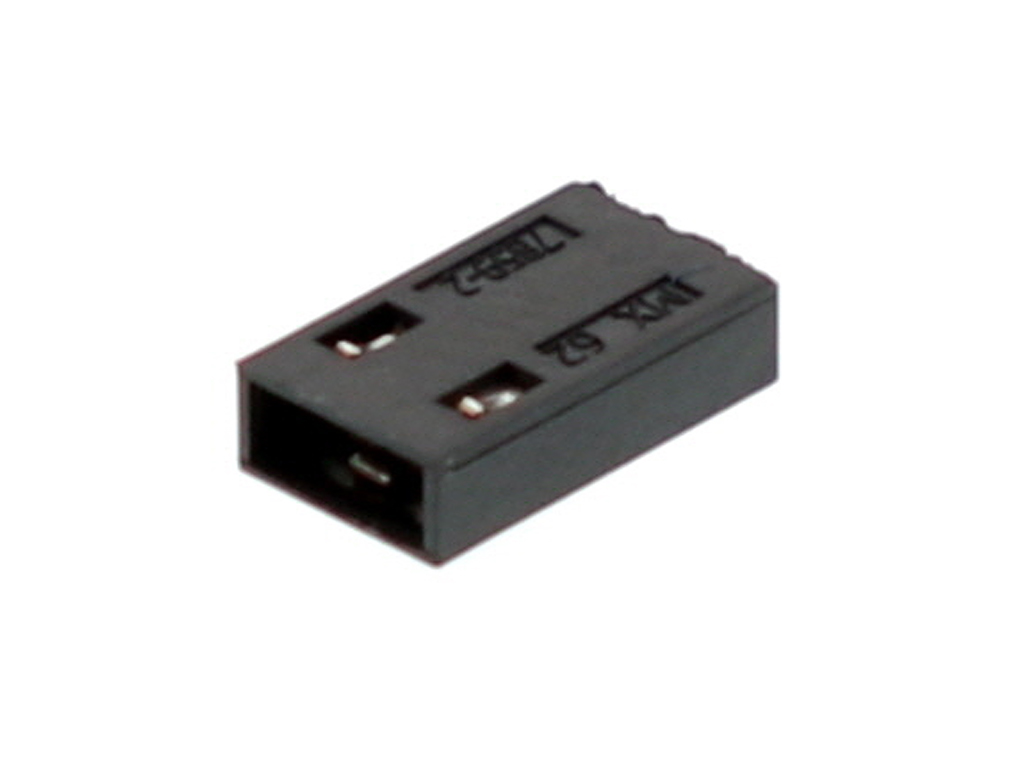

15381026 C-Grid,C-Grid III,SL by Molex
2.54mm Pitch C-Grid Shunt Terminal Housings, Overall Tin (Sn), 2 Circuits, with Pin Stop
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-38-1026,
0015381026, 7859-2A164N |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.14
|
49,471
in stock
|
Buy Now |
|
TME
from US$0.35
|
40,001
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
36,001
in stock
|
Buy Now |
|
RS Americas
from US$0.11
|
9,939
in stock
|
Buy Now |
|
Newark Electronics
from US$0.35
|
549
in stock
|
Buy Now |
|
element14
from US$0.30
|
549
in stock
|
Buy Now |
|
Heilind Americas
from US$0.16
|
507
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
632
in stock
|
Buy Now |
|
|
RS
from US$0.43
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.13
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
|
EME
from US$0.32
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid,C-Grid III,SL |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Resin | Polyester |
| Net Weight | 0.164/g |
| Number Of Rows | 1 |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| C-GRID SHUNT/JUMPER 1X02P | TTI Americas |
| Connector: pin strips | TME |
| SHUNT, CONNECTOR, 2POS, 2.54MM | Farnell |
| CONN. RECT./PCB SHUNT HSG 2.54MM PITCH 2 CIR. C-GRID SER. OPEN END TIN | RS Americas |
| Connector Housing, Rcpt, 2Pos, 2.54Mm Rohs Compliant: Yes |Molex 15-38-1026 | Newark Electronics |
| CONNECTOR HOUSING, RCPT, 2POS, 2.54MM | element14 |
| CGRID SHUNT TIN 2CKT | Heilind Americas |
| Molex 15-38-1026 Shunt | RS |
| Jumper (Busbar), Shunt, Shunt | Avnet America |
| 2.54MM C-GRID SHUNT 2CKT | TTI Europe |
