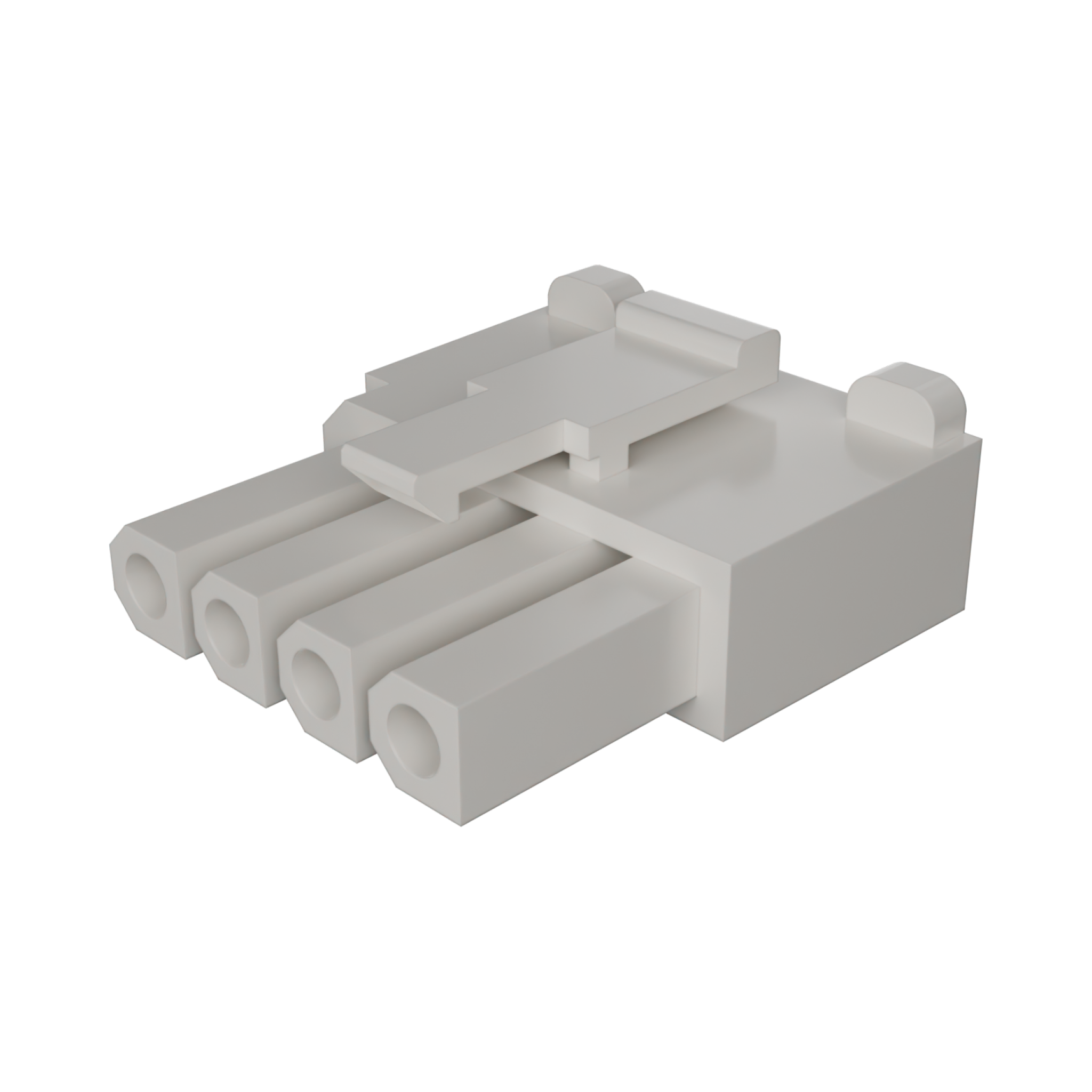

15311042 N/A by Molex
4.80mm Pitch Wire-to-Wire Receptacle Housing, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-31-1042,
0015311042, 5025-04R1 |
Specifications
| Product Name | N/A |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Net Weight | 1824.500/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 4.80mm |
| Pitch Termination Interface | 4.80mm |
| Temperature Range Operating | -40° to +105°C |
