15247180 Mini-Fit BMI by Molex

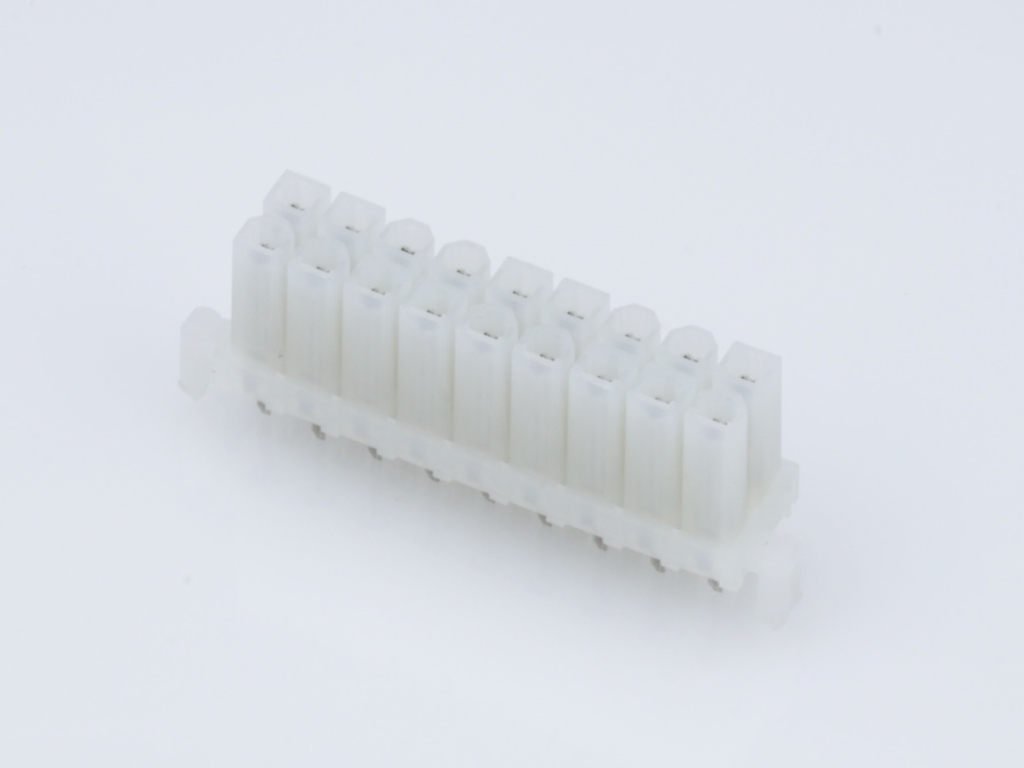

Mini-Fit BMI Receptacle Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-In Plastic Pegs, Brass Terminal, Matte Tin (Sn) Plating, Nylon UL 94V-2, 18 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-24-7180,
0015247180, 42385-18A1 |
Where to Buy
Prices starting from US$1.86
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.59
|
2,816
in stock
|
Buy Now |
|
Avnet Abacus
-
|
960
in stock
|
Buy Now |
|
RS
from US$3.22
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$3.06
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.04
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.13
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.86
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.51
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 18 |
| Circuits Maximum | 18 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 3.665/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
