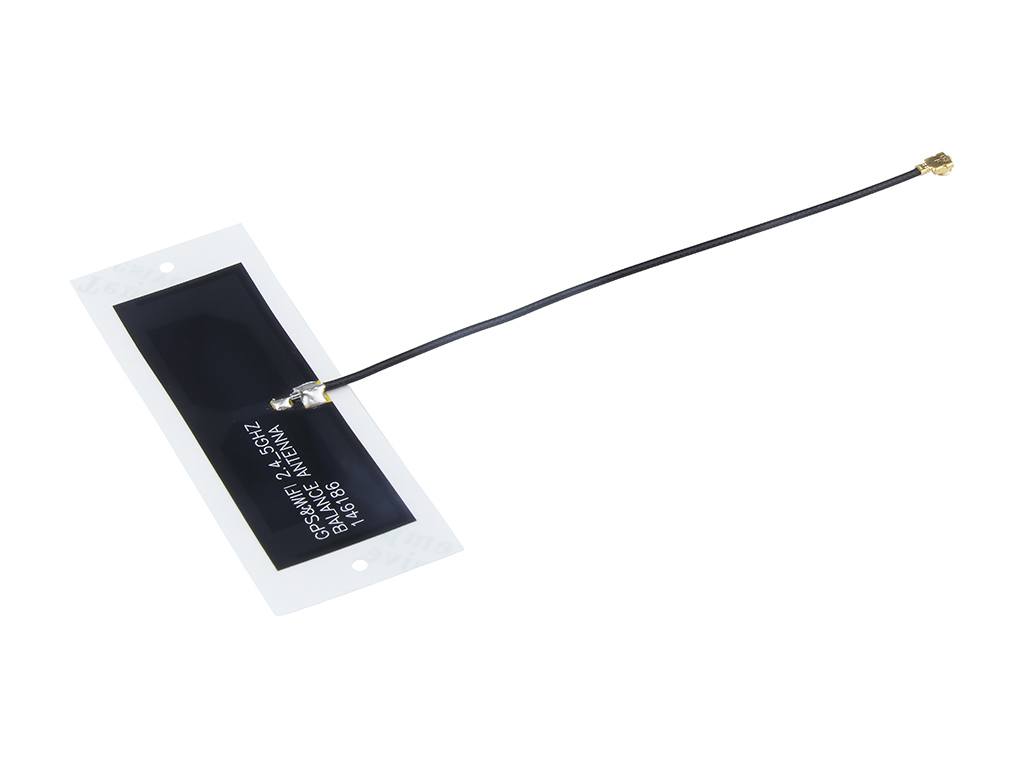

1461860300 2.4/5GHz GPS-Wi-Fi Antenna by Molex
Wi-Fi 6E+GNSS Flex Cabled Balanced Antenna, 18.00mm Width, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146186-0300 |
Where to Buy
Prices starting from US$1.43
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.96
|
1,576
in stock
|
Buy Now |
|
Conrad
from US$1.61
|
1,576
in stock
|
Buy Now |
|
Farnell
from US$2.08
|
1,419
in stock
|
Buy Now |
|
TME
from US$2.77
|
50
in stock
|
Buy Now |
|
RS
from US$2.21
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.43
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.69
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz GPS-Wi-Fi Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 1602 |
| Band1f Start Mhz | 1575.42 |
| Band2f End Mhz | 2483.5 |
| Band2f Start Mhz | 2400 |
| Band3f End Mhz | 5850 |
| Band3f Start Mhz | 5150 |
| Band4f End Mhz | 6000 |
| Band4f Start Mhz | 3000 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.4 @ 1575 MHz, 2.4 @ 2.4 GHz, 3.0 @ 5 GHz, 3.7 @ 3 GHz |
| Return Loss S11db | < -10 |
| Total Efficiency | >56% @ 5 GHz, >61% @ 1575 MHz, >64% @ 3 GHz, >65% @ 2.4 GHz |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Length | 53.00mm |
| Mounting Style | Adhesive |
| Net Weight | 1.513/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 18.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Gps & Wifi Flex Ant300Mm Assy |Molex 146186-0300 | Newark Electronics |
| Molex 146186-0300 1 St. Tape on Full reel | Conrad |
| RF ANTENNA, 3 TO 6GHZ, 3.7DBI | Farnell |
| Antenna | TME |
| Molex 146186-0300 GPS Antenna | RS |
| Flexible Antenna, Quad Band, Linear, 1.575 GHz to 1.602 GHz, 2.4 GHz to 2.483 GHz, 5.15 GHz to 5.85 GHz, 3 GHz to 6 GHz, Adhesive Mount | Avnet America |
| GPS AND WIFI 2.4GHZ/5GHZ COMBO FLEX ANTENNA | RS Americas |
