1300500170 Brad,RJ-Lnxx by Molex

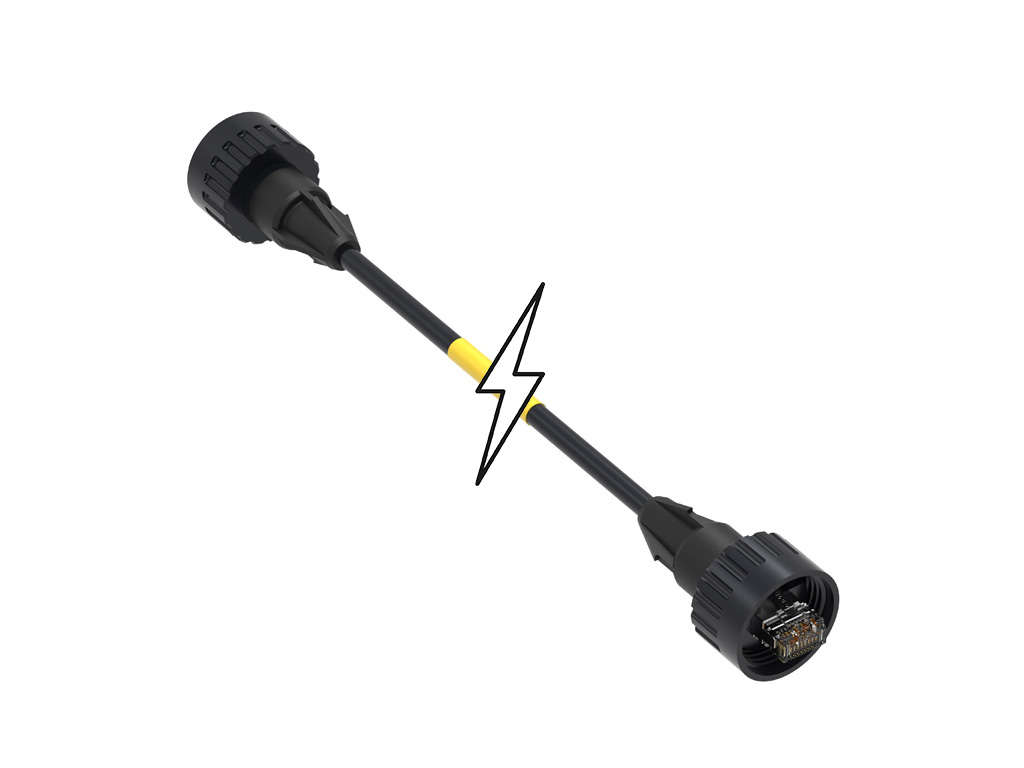

Brad RJ-Lnxx RJ-45 Double-Ended Cordset, 8 Poles, Male (Straight) to Male (Straight), Shielded Cable, 1.0m (3.28') Length, 26 AWG
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130050-0170,
ENP3115M010 |
Specifications
| Product Name | Brad,RJ-Lnxx |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Cable Diameter | 7.37mm (.290") |
| Cable Length | 1.0m (3.28') |
| Color Cable Jacket | Black |
| Connector End A | RJ-45 (industrial) |
| Connector End B | RJ-45 (industrial) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | None |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | ABS |
| Material Plating Mating | N/A |
| Net Weight | 1.000/g |
| Orientation | Straight to Straight |
| Poles | 8 |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | Shielded-Twisted Pair |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
1300500170 Leads by Molex
PATCH CABLE RJ45 CAT5E 1M BLACK
| Status: | Unknown |
|---|---|
| Series: | RJ-Lnxx Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | RJ45 Plug |
|---|---|
| Connector Type B | RJ45 Plug |
| Cable Length - Imperial | 3.3ft |
| Cable Length - Metric | 1m |
| Jacket Color | Black |
| Product Range | RJ-Lnxx Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Patch Cable, Rj45, Cat5E, 1M, Black | Newark Electronics |
| PATCH CABLE, RJ45, CAT5E, 1M, BLACK | element14 |
| Ethernet Cables / Networking Cables ENET MMJ IND/IND 568B 1M | Sager |
