1300130202 Mini-Change by Molex

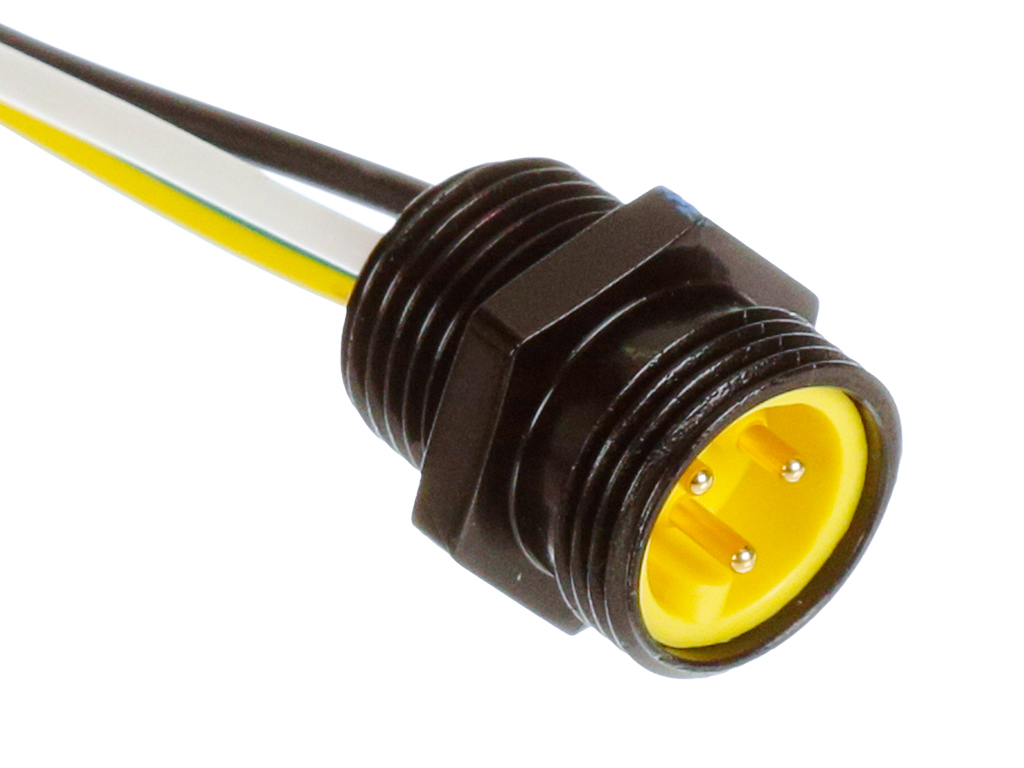

Mini-Change A-Size Receptacle, 3 Poles, 1/2" - 14 NPT Threads, Zinc Die-Cast, Male (Straight) to 16 AWG Leads, 0.305m (1.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130013-0202,
1R3006A20A120 |
Where to Buy
Prices starting from US$13.04
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$20.47
|
156
in stock
|
Buy Now |
|
Farnell
from US$21.65
|
156
in stock
|
Buy Now |
|
Sager
from US$13.04
|
100
in stock
|
Buy Now |
|
TTI Americas
from US$14.44
|
11
in stock
|
Buy Now |
|
RS
from US$21.06
|
0
in stock
|
Buy Now |
|
Avnet America
from US$14.68
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$15.73
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V AC/DC |
Physical |
|
|---|---|
| Coupling Type | External Thread |
| Gender | Male |
| Key Way | Single |
| Length | 0.305m |
| Material Component | Zinc Die-Cast with Black Epoxy |
| Mounting Thread Size | 1/2" - 14 NPT |
| Net Weight | 49.441/g |
| Orientation | Straight |
| Panel Mount | Front |
| Poles | 3 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
130013-0202 Sensors & Transducers by Molex
PLUG 3P A SIZE PANEL MNT 0.3M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | Mini-Change Size A |
|---|---|
| Connector Type B | Wire Leaded |
| Cable Length - Metric | 300mm |
| Cable Length - Imperial | 11.8" |
| Product Range | - |
| Accessory Type | Brad Mini-Change A-Size Receptacle |
| For Use With | Proximity & Photoelectric Sensors Commercial & Industrial LED Light Displays Limit Switches |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-CHANGE CORD, 7/8-16 SOC CONTACTS 3 POSITION RECEPTACLE | element14 |
| Sensor Cables / Actuator Cables MC 3P MR 12IN 16/1 PVC | Sager |
| MINI-CHANGE A REC 3P MA .305M | TTI Americas |
| Molex 1300130202 | RS |
| Cable Assembly PVC 0.305m 16AWG 3 POS Circular M | Avnet America |
| MC 3P MR 12IN 16/1 PVC | Heilind Europe |
