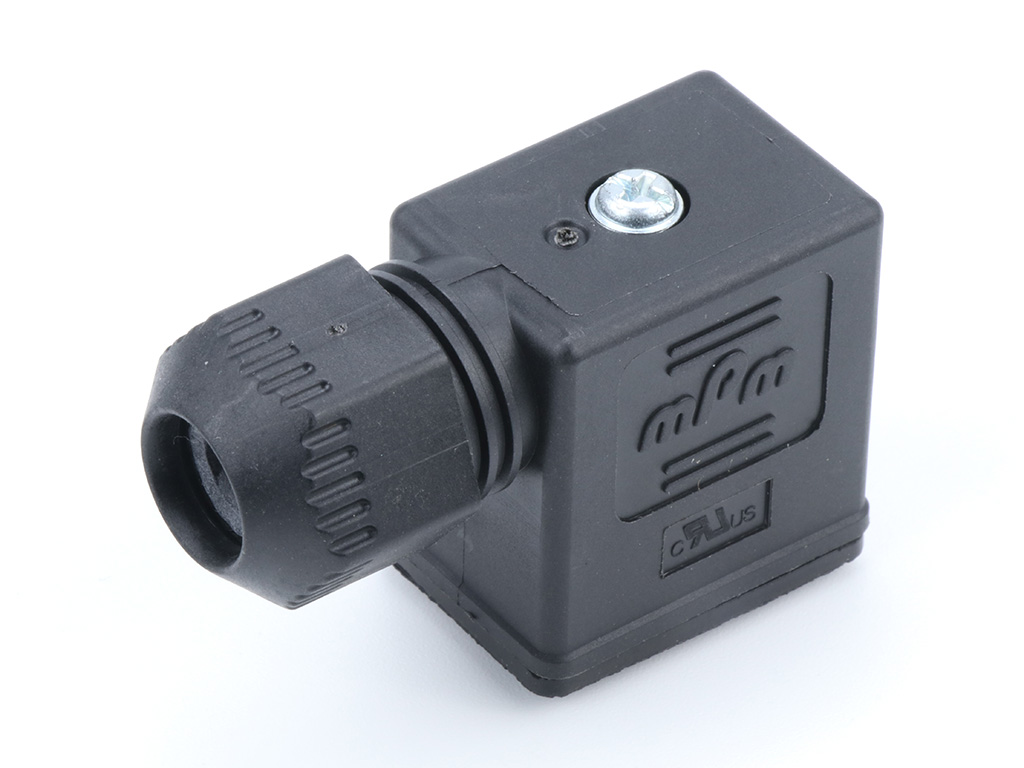

1212020017 mPm by Molex
mPm DIN Valve Connector, Form B-11mm, External Thread, 2 Pole Plus Ground Terminal, 250V AC/DC, Black, Integrated Nitrile Gasket, UL94-V0 Rated, Bulk Pack, Mounted
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
121202-0017,
C22200W2RSNSA |
Specifications
| Product Name | mPm |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 16.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Diameter | 4.00-9.00mm (.157-.354") |
| Coupling Type | External Thread |
| Diagnostics Leds | No |
| Diagnostics Port | No |
| Form | B - 11mm |
| Gender | N/A |
| Key Way | None |
| Material Connector Body | Polyamide |
| Material Contact | Brass |
| Material Coupling Nut | N/A |
| Material Plating Mating | Silver |
| Net Weight | 16.500/g |
| Orientation | 90° Angle |
| Pitch Mating Interface | 11.00mm |
| Poles | 2 |
| Temperature Range Operating | -40° to +90°C |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
1212020017 Miscellaneous Accessories by Molex
TYPE B IND H12 BLK V0 BULK MOUNTED NBR
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Din Valve Connector, 2Pos, Pa, 4-9Mm | Newark Electronics |
| Circular DIN Connectors mPm FORM B IND H12 BLK V0 MOUNTED | Sager |
