1054440001 USB by Molex

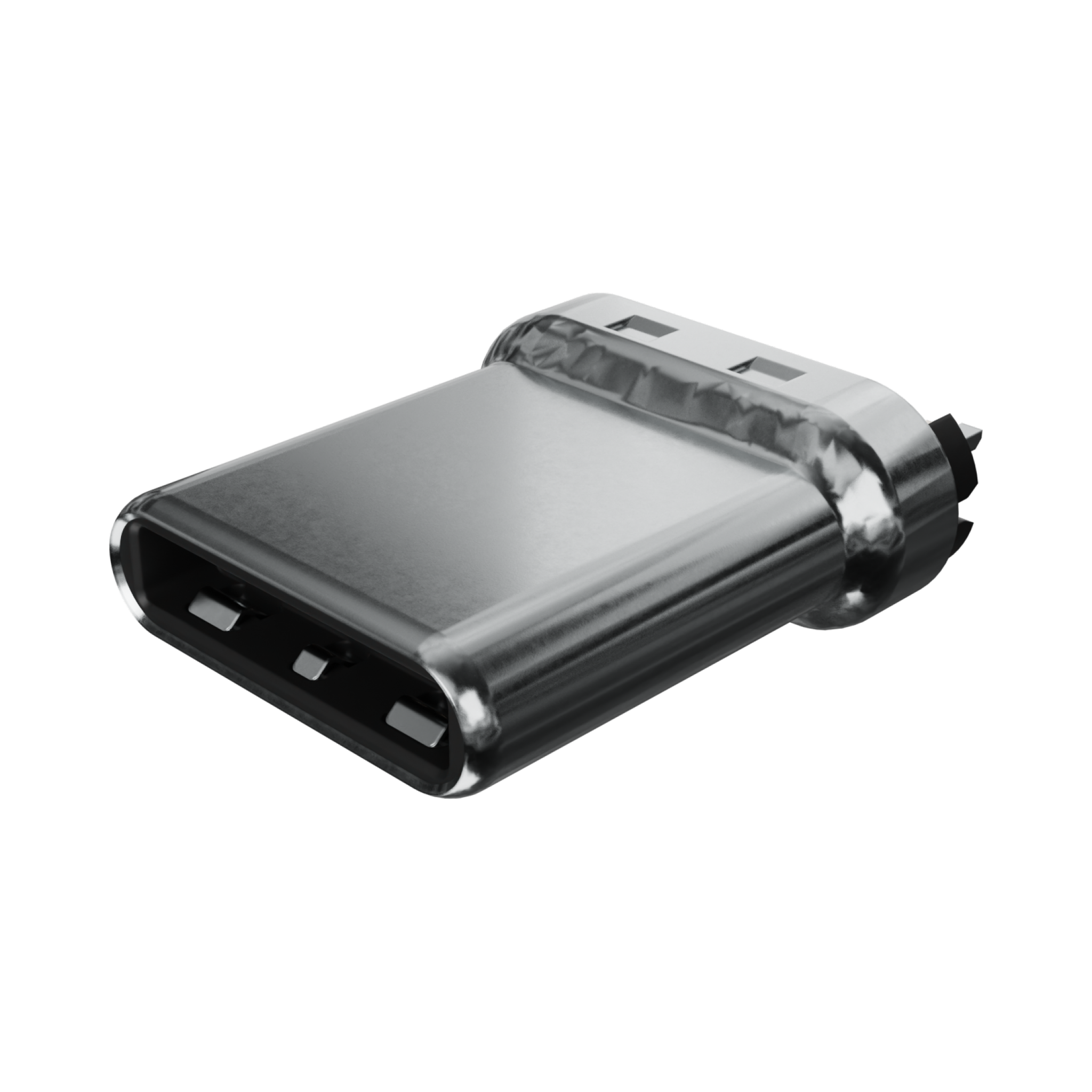

Universal Serial Bus (USB) Shielded I/O Plug, Type C, Right-Angle, Surface Mount, 0.76µm Gold (Au) Plating, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105444-0001 |
Where to Buy
Prices starting from US$0.85
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.25
|
7,148
in stock
|
Buy Now |
|
Farnell
from US$2.87
|
6,483
in stock
|
Buy Now |
|
TTI Americas
from US$2.19
|
3,920
in stock
|
Buy Now |
|
|
TTI Europe
from US$2.02
|
2,400
in stock
|
Buy Now |
|
TME
from US$1.70
|
108
in stock
|
Buy Now |
|
element14
from US$1.98
|
86
in stock
|
Buy Now |
|
RS
from US$2.53
|
69
in stock
|
Buy Now |
|
Newark Electronics
from US$2.36
|
42
in stock
|
Buy Now |
|
|
RS Americas
from US$0.85
|
19
in stock
|
Buy Now |
|
Avnet Abacus
-
|
8,700
in stock
|
Buy Now |
|
Offical Electronic
-
|
15
in stock
|
Buy Now |
|
Avnet America
from US$1.15
|
0
in stock
|
Buy Now |
|
Compona
from US$1.27
|
0
in stock
|
Buy Now |
|
Sager
from US$1.62
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.07
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.25A, 1.25A, 5.0A |
| Grounding To Panel | None |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 22 |
| Circuits Maximum | 22 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Gender | Male |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Top-Mount |
| Net Weight | 0.633/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Yes |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 0.80mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 3.048µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -30° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Plug 1054440001 1054440001 Molex Inhalt: 1 St. | Conrad |
| USB CONN, 3.1 TYPE C, R/A PLUG, 22POS | Farnell |
| USB PLG RA SMT AU | TTI Americas |
| USB3.1 TYPE C PLUG CONNECTOR | TTI Europe |
| Connector: USB C | TME |
| USB CONN, 3.1, USB TYPE C, PLUG, SURFACE | element14 |
| Molex 105444-0001 USB Connector | RS |
| Usb Conn, 3.1, Usb Type C, Plug, Surface | Newark Electronics |
| USB SHIELDED I/O PLUG, TYPE C, RIGHT ANGLE, SURFACE MOUNT, 0.76UM GOLD PLATING | RS Americas |
| Conn USB Type C PL 22 POS 0.5mm Solder RA SMD 22 Terminal 1 Port Tray | Avnet Abacus |
| MOLEX 105444-0001 Socket Square USB-C 22p SMT 90°, USB 3.1 | Compona |
| USB Connectors USB PLG RA SMT AU | Sager |
| TYPE C PLUG CONNECTOR | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1054440001?
Additional datasheets, footprints and schematics for 1054440001 are listed on our Part Details page. You can also find images and similar parts to 1054440001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1054440001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1054440001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1054440001 fall under?
The 1054440001 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1054440001 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1054440001 you can contact the distributor directly for product support, shipping queries etc.
Is the 1054440001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1054440001 have stock available?
Authorised distributors including Conrad, Farnell, TTI Americas, TTI Europe and TME have stock available or on a lead time for 1054440001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1054440001 often in real-time on the comparison pages.
What if I can't find stock of 1054440001?
You can fill out our help required form which you can use to request a quote for 1054440001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
