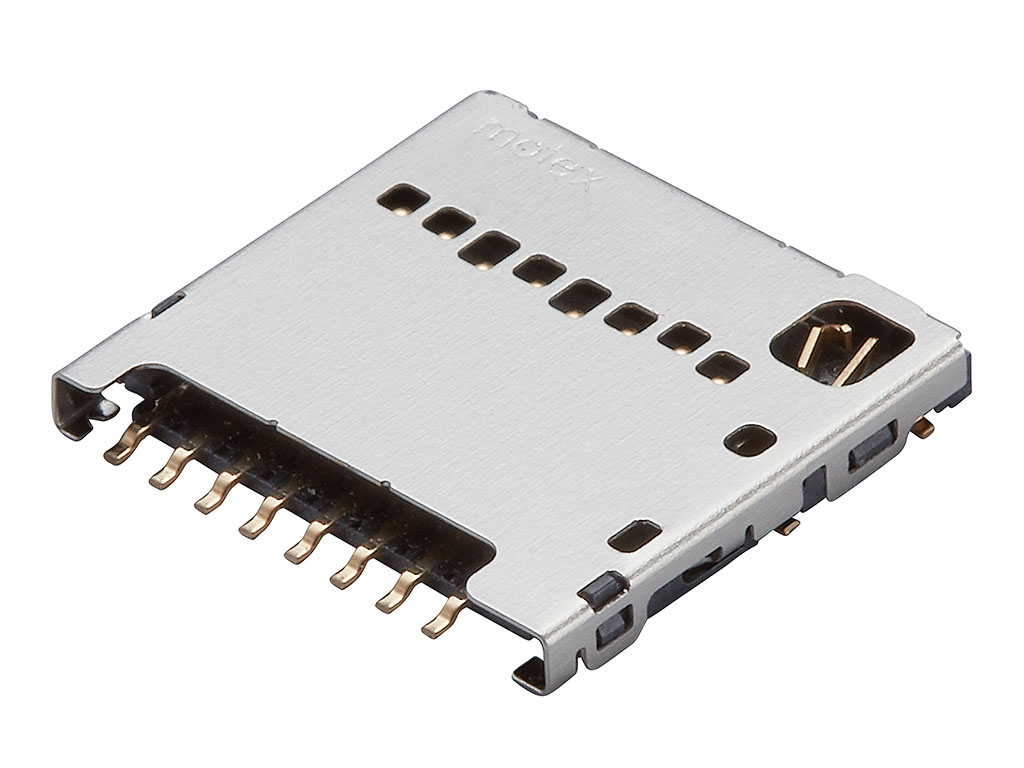

1040310811 microSD Card by Molex
1.10mm Pitch microSD Memory Card Connector, Surface Mount, Push-Pull Type, 1.42mm Height, with Detect Switch
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 104031-0811 |
Where to Buy
Prices starting from US$0.99
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.05
|
80,000
in stock
|
Buy Now |
|
Conrad
from US$1.89
|
55,386
in stock
|
Buy Now |
|
Farnell
from US$1.39
|
50,500
in stock
|
Buy Now |
|
Avnet America
from US$0.99
|
38,000
in stock
|
Buy Now |
|
element14
from US$1.42
|
7,993
in stock
|
Buy Now |
|
Newark Electronics
from US$1.52
|
3,130
in stock
|
Buy Now |
|
RS
from US$3.49
|
898
in stock
|
Buy Now |
|
Avnet Abacus
-
|
56,000
in stock
|
Buy Now |
|
TME
from US$1.25
|
0
in stock
|
Buy Now |
|
Compona
from US$1.21
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.99
|
0
in stock
|
Buy Now |
|
Sager
from US$1.08
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.07
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.05
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | microSD Card |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Shielded | Yes |
| Voltage Maximum | 10V AC (RMS)/DC |
Physical |
|
|---|---|
| Card Detection Switch | Open |
| Card Entry Location | Front |
| Circuits Loaded | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Ejector Button Side | N/A |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Shell | Stainless Steel |
| Net Weight | 0.259/g |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.10mm |
| Temperature Range Operating | -25° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.10MM MICRO SD 08P PUSH/PULL | TTI Europe |
| Molex Speicherkarten-Slot Polzahl Gesamt 8 Rastermaß: 1.1 mm 1040310811 1 St. Tape on Full reel | Conrad |
| MEMORY AND SIM CARD | Farnell |
| Conn Micro SD Card Receptacle 8 POS 1.1mm Solder Right Angle Surface Mount | Avnet America |
| CONNECTOR, MICRO SD, 8POS | element14 |
| Connector, Micro Sd, 8Pos | Newark Electronics |
| microSD 1.10mm SMT push-pull memory card | RS |
| Connector: for cards | TME |
| MOLEX 104031-0811 Plug microSD 8p SMT | Compona |
| Memory Card Connectors 1.10MM MICRO SD 08P PUSH/PULL | Sager |
| MICROSD SOCKET PUSH/PULL 2000PC/REEL | Heilind Europe |
