09481104 KK 396 by Molex

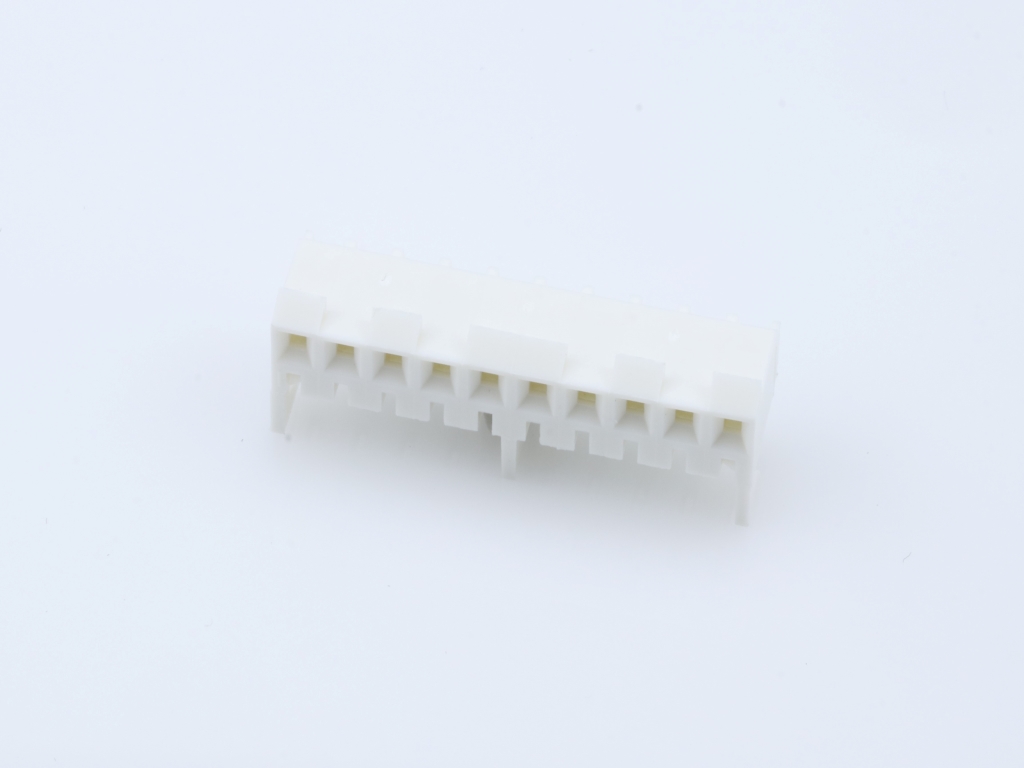

KK 396 PC Board Connector, Right-Angle, with Ramp, Phosphor Bronze, 3.68mm Tail Length, 1.52µm Matte Tin (Sn) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-1104,
0009481104, A-41815-0010 |
Where to Buy
Prices starting from US$0.62
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.40
|
11,410
in stock
|
Buy Now |
|
Farnell
from US$2.46
|
10,472
in stock
|
Buy Now |
|
TME
from US$1.30
|
6,160
in stock
|
Buy Now |
|
TTI Europe
from US$1.27
|
896
in stock
|
Buy Now |
|
Newark Electronics
from US$2.57
|
13
in stock
|
Buy Now |
|
element14
from US$1.63
|
13
in stock
|
Buy Now |
|
Avnet America
from US$0.62
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.77
|
0
in stock
|
Buy Now |
|
Compona
from US$1.14
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.01
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.13
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Mounting Style | Through Hole |
| Net Weight | 3.347/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.68mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
