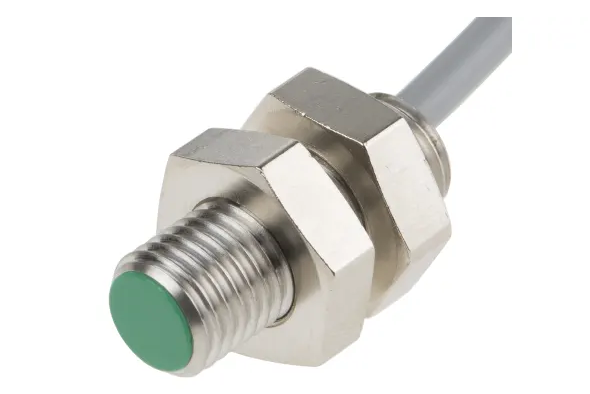

Correct positioning of inductive proximity sensors can be interesting. Thanks to the IFRM 08P1713/L's threaded barrel housing, deploying the inductive sensor is as easy as mounting it to a hex nut, a tapped hole, or a similar mechanical feature.

Baumer recommends that the IFRM 08P1713/L should be mounted flush with its surroundings. It then has a nominal sensing distance of 2mm and will detect targets approaching the sensor tip.

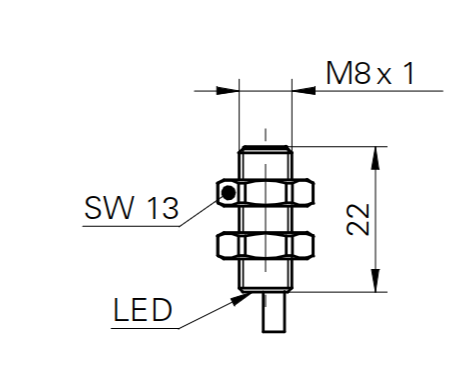

The actual housing is threaded in an M8 shell as shown in the figure below.

Rear-Facing LED for Comfortable Position Monitoring

Plant maintenance is greatly simplified when using this Baumer inductive sensor. A red LED, conveniently placed at the back of the housing, provides an immediate visual overview of the detection status. This way, the sensor\'s functionality can be verified without connecting to the PLC or returning to the control panel. In terms of robustness, the IFRM08P1713/L satisfies the demands of the IP67 protection class. It can, furthermore, operate over an ambient temperature range of -25 to +75°C.

2 Meters of Cable Provided

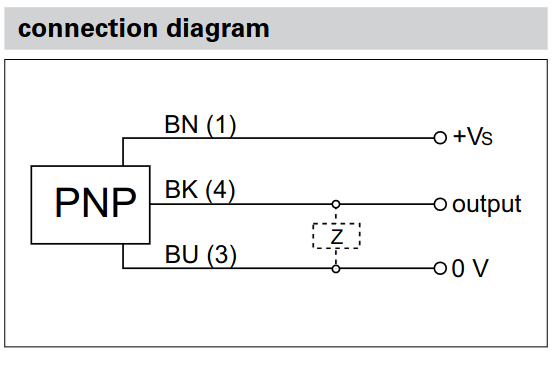

At the back of the sensor, a 2m long cable permits connection to the output. The actual switching, then, occurs via the PNP principle, as outlined in the figure below.

Regarding power supply, the IFRM08P1713/L accepts a direct current range of 10 to 30 V. Its current consumption is typically less than 12 mA, with an output current of up to 200 mA supported. The inputs and outputs are, furthermore, protected against both short circuits and reverse polarity. This way, the sensor can survive installation in challenging environments.

Conclusion

If a design requires an inductive proximity switch, the Baumer IFRM08P1713/L is a great choice. Thanks to its M8-threaded housing, installing the inductive position sensor near the task to be measured at hand is greatly simplified. The comfortable interface, the monitoring LED, and the flexible input voltage range, then, ensure absolute satisfaction in industrial automation sensing.
