190040005 InsulKrimp by Molex

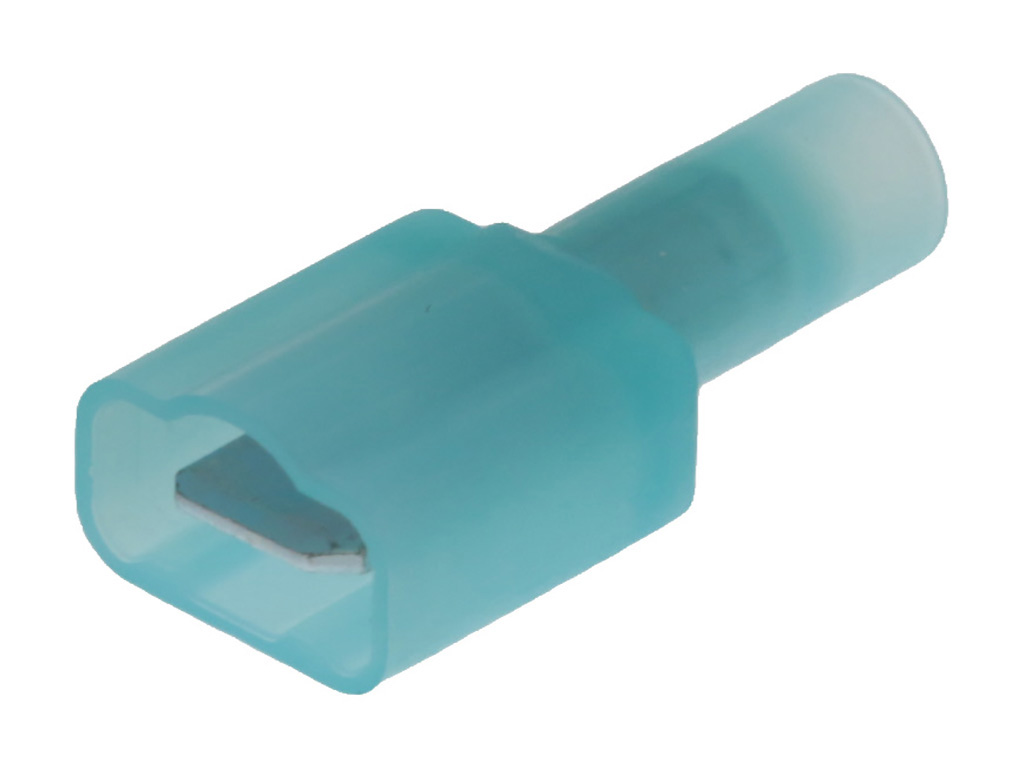

InsulKrimp Fully Insulated Coupler, Male, for 16-14 AWG Wire, Box, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19004-0005,
0190040005, BB-2262 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.14
|
23,363
in stock
|
Buy Now |
|
Conrad
from US$0.25
|
22,400
in stock
|
Buy Now |
|
Farnell
from US$0.25
|
20,160
in stock
|
Buy Now |
|
RS Americas
from US$0.27
|
6,698
in stock
|
Buy Now |
|
TTI Americas
from US$0.16
|
5,730
in stock
|
Buy Now |
|
Newark Electronics
from US$0.22
|
989
in stock
|
Buy Now |
|
element14
from US$0.25
|
989
in stock
|
Buy Now |
|
|
RS
from US$0.53
|
940
in stock
|
Buy Now |
|
TME
from US$0.26
|
350
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
29,370
in stock
|
Buy Now |
|
Avnet Abacus
-
|
16,000
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Zinc Chromate |
| Material Plating Termination | Zinc Chromate |
| Material Resin | Nylon |
| Net Weight | 1.388/g |
| Orientation | Straight |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 4.32mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .250X.032 MALE FIQD COUPLER ( B-2262) | Heilind Americas |
| Molex 190040005 Flachstecker 1 St. Bulk | Conrad |
| MALE QUICK DISCONNECT, 16-14AWG, BLUE | Farnell |
| FTAB-DSC|16-14|250X032|NYL|BLU | TTI Americas |
| Male Disconnect, 6.35Mm, 16-14Awg, Blu | Newark Electronics |
| MALE DISCONNECT, 6.35MM, 16-14AWG, BLU | element14 |
| Molex 190040005 | RS |
| Terminal: flat | TME |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190040005?
Additional datasheets, footprints and schematics for 190040005 are listed on our Part Details page. You can also find images and similar parts to 190040005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190040005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190040005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190040005 fall under?
The 190040005 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190040005 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190040005 you can contact the distributor directly for product support, shipping queries etc.
Is the 190040005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190040005 have stock available?
Authorised distributors including Heilind Americas, Conrad, Farnell, RS Americas and TTI Americas have stock available or on a lead time for 190040005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190040005 often in real-time on the comparison pages.
What if I can't find stock of 190040005?
You can fill out our help required form which you can use to request a quote for 190040005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
